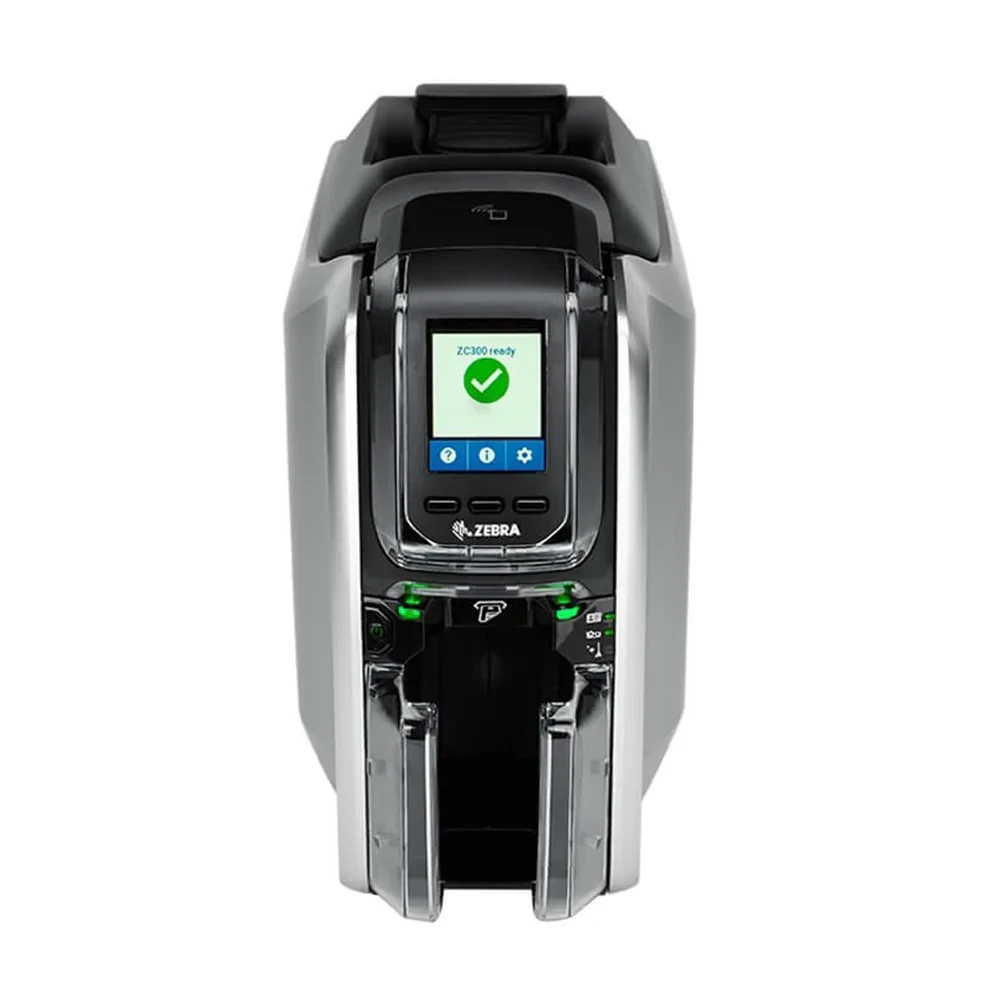

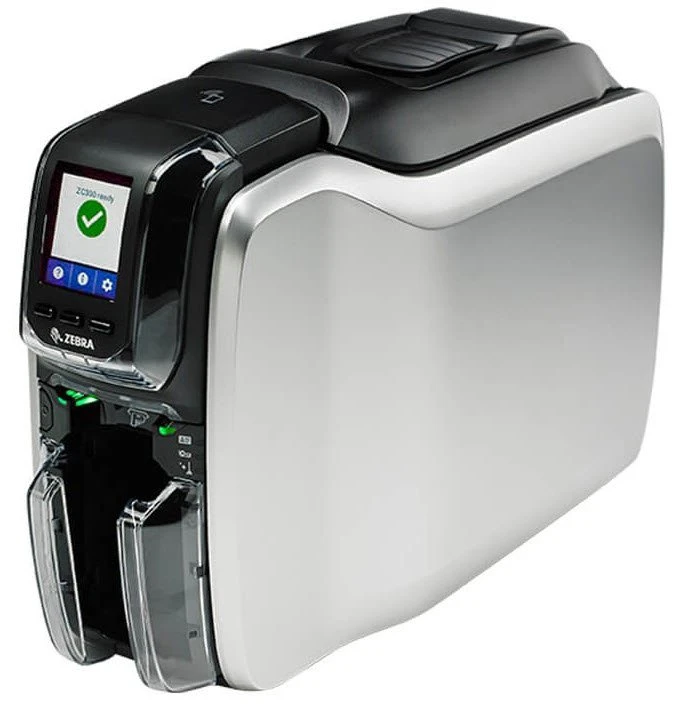

Zebra ZC300 Dual-Sided ID Card Printer

Key Features & Overview

Printing Technology

1. Uses dye-sublimation thermal transfer for high-quality, photo-realistic printing.
2. Supports full-color (YMCKO / YMCKOK) and monochrome printing.
3. Capable of single- and dual-sided printing.
4. Prints edge-to-edge on standard CR-80 (credit card–sized) cards.

Print Speed / Throughput (with USB / batch mode)

1. Up to 900 cards/hour for single-sided, monochrome printing.
2. ~200 cards/hour for single-sided color (YMCKO).
3. ~140 cards/hour for dual-sided color (YMCKOK).
4. ~450 cards/hour for dual-sided monochrome.

Media / Card Handling

1. Card capacity: 100-card input hopper, 100-card output hopper (for 30 mil cards).
2. Supports cards in the CR-80 / CR-79 formats.
3. Card thickness: 10–40 mil (PVC and PVC composite cards supported).
4. Uses Zebra genuine ribbon cartridges (lots of options): YMCKO, YMCKOK, monochrome (black, white, red, blue, gold, silver), etc.

Connectivity

1. USB 2.0 port standard.
2. 10/100 Ethernet built in.
3. Optional 802.11ac Wi-Fi (for wireless printing) with certain models.

Encoding Options

1. Magnetic stripe encoder (ISO 7811, tracks 1–3, high/low coercivity) when the dual-sided option is used.
2. Optional contactless (NFC / MIFARE) encoders and smart card contact stations are available via accessories.

Security & Usability

1. Graphical LCD / LED interface with intuitive icons, messages, and animations.
2. Kensington lock slot for physical security.
3. Print Touch NFC tag: tap with a phone to access online help/documentation.
4. Data encryption and host authentication supported for secure operations.

Memory / Performance

1. ~2 GB of flash memory onboard, which helps with image processing and storing card designs.
2. Maximum image resolution: 300 dpi.

Physical Dimensions & Weight

1. Dual-sided model size: ~10.2″ H × 6.2″ W × 18.4″ D (258 mm × 157 mm × 468 mm).
2. Weight: ~9.7 lbs (4.4 kg).

Security & Build Quality

1. Comes with a printer cover lock to prevent theft of cards or ribbon.
2. Designed for “fits-everywhere” — compact enough for offices, reception areas, or customer-facing environments.
3. Ribbon cartridge is recyclable.

Durability

1. According to Zebra’s spec sheet: 3-year limited warranty on printer and printhead.

Use Cases / Ideal Applications

1. ID Badges: Great for printing staff IDs, student IDs, or membership cards.
2. Access Control / Security: With support for magnetic stripe or contactless encoding, it’s suitable for secure access or smart ID cards.
3. Events / Badges: Useful for event organizers who need to print high-quality dual-sided name badges or access credentials on the fly.
4. Retail / Loyalty Cards: Can produce membership or loyalty cards with a professional finish.
5. Small to Medium Offices: Compact form factor fits well in offices, HR departments, or reception areas.

Pros & Strengths

1. High print fidelity — 300 dpi dye-sub gives very good image quality.
2. Dual-sided printing — saves time and creates professional two-sided cards without manually re-flipping.
3. Good throughput — fairly fast, especially in monochrome mode.
4. Flexible connectivity — USB, Ethernet, and optional Wi-Fi.
5. User-friendly — intuitive interface, easy ribbon loading, auto card feeder.
6. Secure — encryption, lock slot, and host authentication increase security.
7. Compact design — “fits everywhere” design makes it usable in many office environments.

Considerations / Potential Drawbacks

1. Ribbon cost: Uses Zebra’s genuine ribbons; specialty ribbons (e.g., dual-sided) may be more expensive.
2. Card thickness constraints: While 10–40 mil is supported, very thin or very thick cards may be more limited.
3. Speed in color: Dual-sided color printing is slower (~140 cards/hour) compared to monochrome.
4. Initial setup: While easy, dual-sided and encoding options may require configuration or extra modules.
5. Waste handling: There’s a 10-card reject bin for failed prints (per some sources), which means you need to manage rejected cards.

Summary

The Zebra ZC300 Dual-Sided ID Card Printer is a modern, compact, and secure card printer built for flexibility:

1. It can print single or double-sided cards in color or black-and-white.
2. It offers good speed and quality, especially for high-volume badge printing or secure card production.
3. Its connectivity options (USB, Ethernet, optional Wi-Fi) and security features make it very suitable for business or institutional settings.
4. The intuitive interface and easy loading/hopper design reduce the friction for day-to-day use.
