USB to M.2 NGFF/NVMe 2-in-1 SSD enclosure | external case

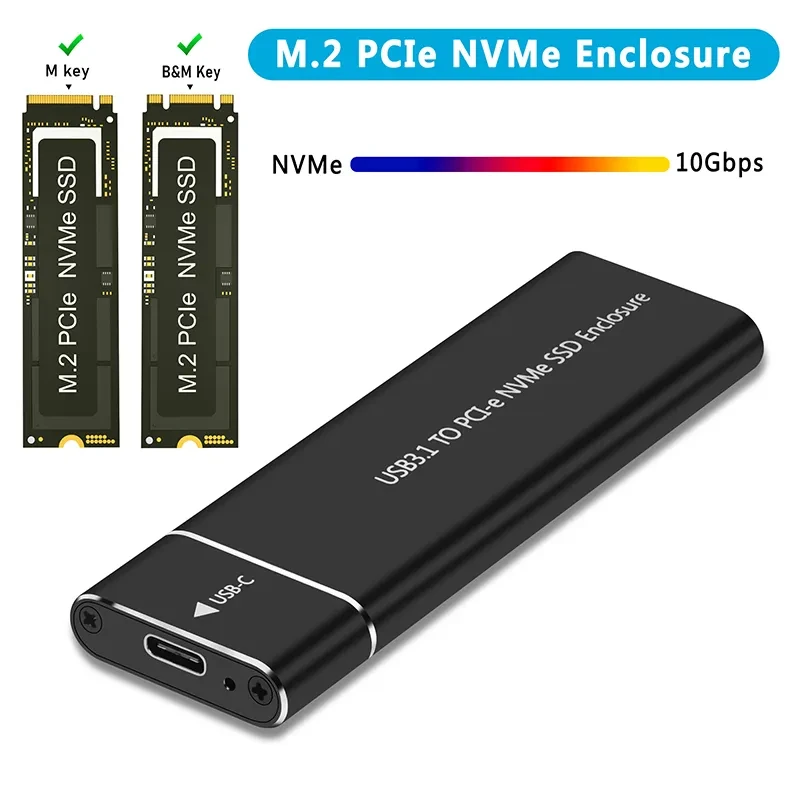

An M.2 NGFF/NVMe 2-in-1 enclosure is an external case that lets you put in an M.2 SSD (either SATA-based “NGFF” or PCIe-based NVMe) and use it as a portable storage device via USB. This is really useful if you have a spare M.2 SSD and want to turn it into an external drive for backups, data transfer, or extra storage.

Key Features & Specs (Based on Common Models)

Dual-Protocol Support

1. Supports M.2 NVMe (PCIe) SSDs and M.2 NGFF (SATA) SSDs.
2. Compatible with different key types: M-Key for NVMe, B+M Key for SATA.
3. Supports common SSD sizes: 2230, 2242, 2260, 2280.

High-Speed Data Transfer

1. Uses USB 3.1 Gen 2 / USB 3.2 Gen 2 (Type-C) interface, which can support up to 10 Gbps.
2. Many enclosures use chips like the RTL9210B to achieve this speed.
3. Some support UASP (USB Attached SCSI Protocol), which improves speed/performance for SSDs.

Build & Design

1. Often made of aluminum alloy, which helps dissipate heat when the SSD is working.
2. Some are tool-free, meaning you can open the enclosure and install the SSD without needing screws or a screwdriver.
3. Some designs include ventilation holes to help with cooling.

Capacity Support

1. Can support SSDs up to around 2 TB in many models.
2. Some enclosures go even higher (e.g., up to 4 TB) depending on the brand.

Compatibility

1. Works with Windows, macOS, Linux, and sometimes Android (via OTG).
2. Since it’s USB-based, it’s plug-and-play — no special drivers usually needed.

Power & Connectivity

1. The enclosure is bus-powered (i.e., it gets power from the USB port, no external power adapter needed).

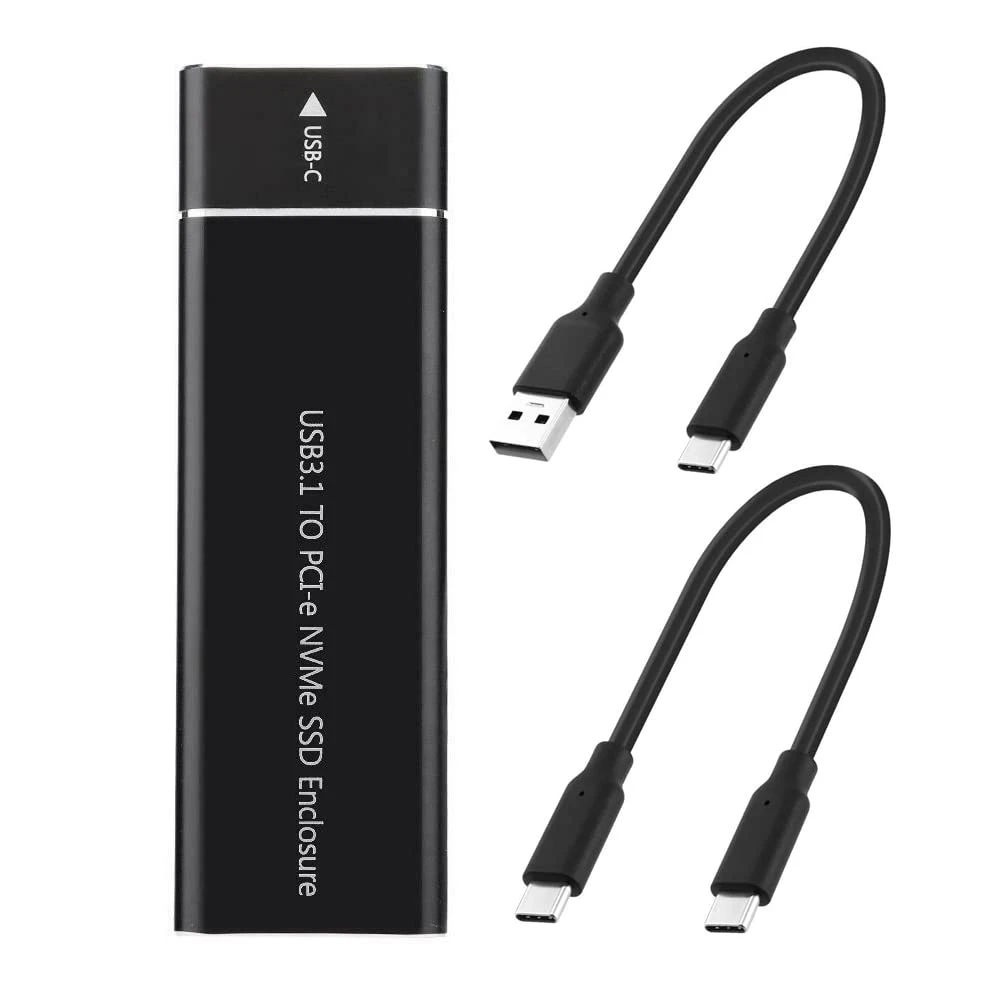

2. Comes with USB cables, often a 2-in-1 cable (Type-C to Type-C and Type-C to Type-A) so you can connect to different devices.

Durability / Lifespan

1. Aluminum shell for protection.
2. Some models support TRIM, which helps maintain SSD performance over time.

Use Cases — When to Use It

1. Turning an internal SSD into external storage: If you have a spare M.2 SSD, this enclosure makes it useful as a portable drive.
2. High-speed backups: Great for fast data transfer, since NVMe + USB 3.1 Gen 2 is very quick.
3. Data migration: Useful for migrating files between computers.
4. Portable media storage: Use it as a portable “external SSD” for videos, games, or large files.
5. Cloning SSDs: You can clone your internal drive to an SSD in the enclosure before reinstalling or upgrading.
